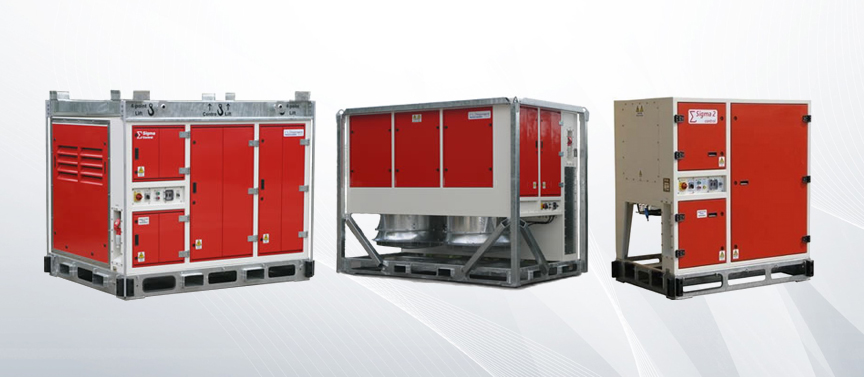

INDUCTIVE LOAD BANKS
Inductive (or inductive reactive) load banks are used in conjunction with resistive
load banks for testing AC supplies at non unity power factors. Most generating sets
are rated at 0.8 power factor (or CosØ), so to test at rated conditions requires
both resistive and inductive load.
Inductive load banks can be customised for a particular application, or they can
be combined into one unit with resistive load banks.
Reactive load inductors
The Proofloader uses replaceable load elements which are conservatively rated and
sheathed in stainless steel for corrosion resistance. They do not need cooling fins,
which means that they are very reliable, because they are not susceptible to hot
spots caused by foreign matter or loose fins.
Access and control
A comprehensive system of guards and interlocks ensures safe and reliable operation,
and the Sigma control system provides easy-to-use manual or automatic test programs.
Control is either from an intelligent hand terminal, or from a PC running the Sigma
PC system software.
