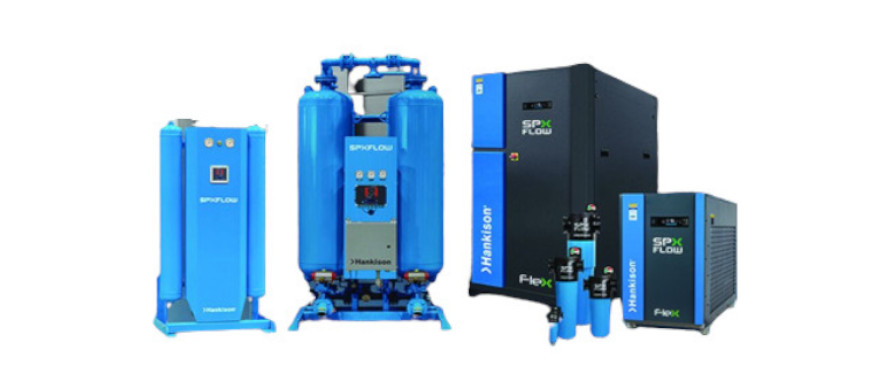

Compressed Air Treatment

Hankison specializes in the manufacture and supply of dehydration, filtration and air purification solutions for the global market. As an SPX FLOW brand, Hankison is dedicated to the ongoing technological progression in this field - providing factories and processing plants with access to the compressed air they need day-in, day-out. Through an array of easy-to-install air handling equipment, Hankison dehydration equipment creates compressed air, free from moisture and contaminants. As a result, our customers are presented with a constant supply of clean, dry air that won’t affect human health, the lifetime of processing equipment they use, or the quality of their end-products. The Hankison portfolio spans from compact units right through to large scale items of equipment. All different volume capacities, pressure levels, flow rates and dew points can be met. Furthermore, the sophisticated energy management mechanisms that these products incorporate help to significantly curb electricity consumption - delivering lower operational costs and environmental benefits to customers. .

Products

  • Refrigeration Dryers
  • Desiccant Dryers
  • Hybrid Dryers
  • Membrane Dryers
  • Filters
  • Condensate Management

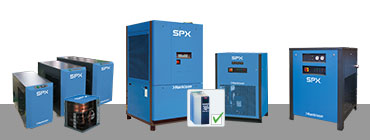

Refrigeration Dryers

Refrigeration Dryers

• 20 – 12.000 m3/h • 2,5 – 45 bar • Dew point up to +3°C • Energy saving (optional) • Water cooled • Available as combination with adsorption dryer • Corrosion-resistant air circuit • Well-proven branded components • Service-friendly design

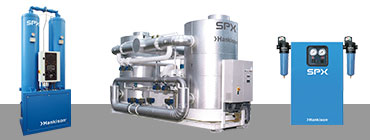

Desiccant Dryers

Desiccant Dryers

• 9 – 13.550 m3/h • 4 – 16 bar • Dew point up to -70° C • Heatless regeneration • Heat regeneration (internal & external) • Energy management control (optional) • Low pressure drop • Operation reliability & performance • Mechanically stable, low-dusting desiccant

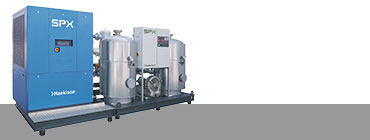

Hybrid Dryers

Hybrid Dryers

• 1.200 – 9.000 m3/h • 4 – 10 bar (16 bar optional) • Dew point up to -40° C • Frequency-controlled/Digital Scroll • Hybrid technology • Energy-saving • Well-proven branded components • Long service life • Summer/winter operation • Short payback time

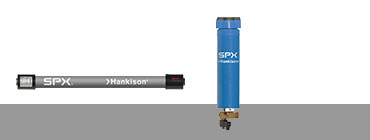

Membrane Dryers

Membrane Dryers

• 2,4 – 242 m3/h • 4 – 14 bar • Dew point up to -40° C • Vertical & horizontal variants • Suitable as point-of-use dryer • No electrical connection needed

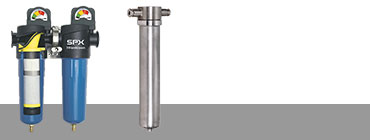

Filters

Membrane Dryers

• 34 – 17.550 m3/h • 3 – 45 bar • Thread & flange filtes • 5 different filtration grades, defined by coloured end caps • Reduced pressure drop • Optimized flow of compressed air • High reliability • Long service life • Silicon-free

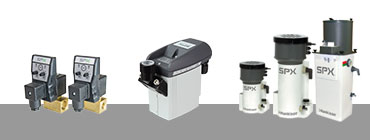

Condensate Management

Membrane Dryers

•Timer controlled drains •Electronic level-controlled drains
